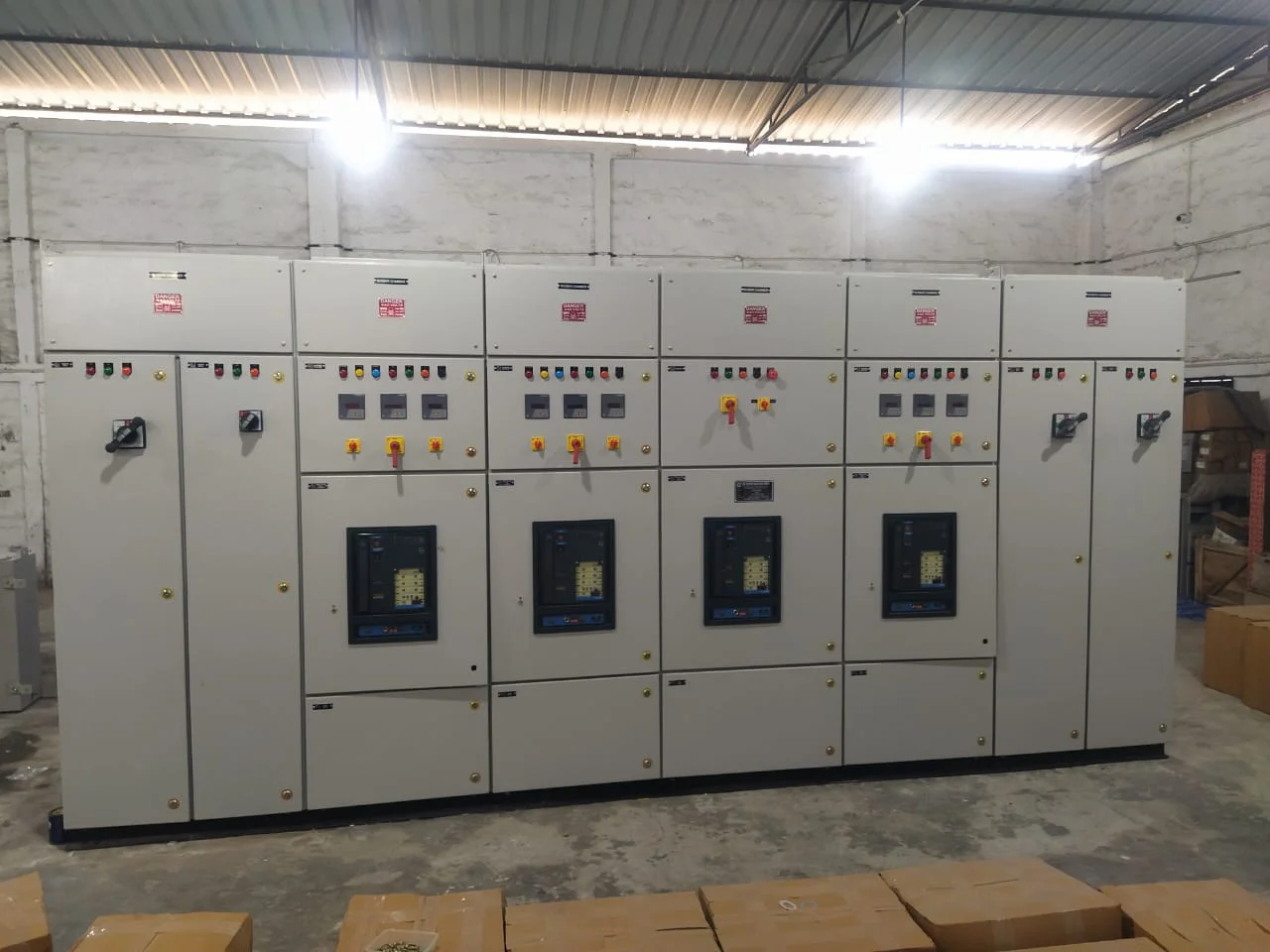

Technical specification of LV PDB Panel
| Specification | Customization Available |
|---|---|
| Panel Type | Available in floor-mounted, wall-mounted, and trolley-mounted configurations. |
| Voltage Rating | Customizable for voltage ratings up to 690V to meet different project and industry needs. |
| Current Rating | Tailored to support various current ratings, ranging from low to high current requirements. |
| Busbar Rating | Busbar capacity can be customized for specific loads, ensuring safe and efficient power distribution. |
| Number of Circuits | Custom circuit configurations (single-phase, three-phase) based on the number of outgoing circuits. |
| Incoming & Outgoing Feeders | Flexible feeder configuration options (top or bottom entry, side entry) for cable and busbar connections. |
| Protection Features | Custom protection features such as overcurrent, short circuit, earth fault, and surge protection. |
| Metering | Optional integration of digital or analog meters for voltage, current, and power monitoring. |
| Enclosure Material | Options for sheet metal, stainless steel, or fiberglass enclosures depending on environmental conditions. |
| IP Protection Rating | Available in different IP ratings (IP20 to IP65) for varying degrees of dust and water resistance. |
| Cooling Mechanism | Customizable with ventilation or forced air cooling based on ambient temperature and load. |
| Automation | Integration options for automatic switching, load shedding, and sequencing as per customer requirements. |
| Modular Design | Modular design options allow easy expansion, modification, or upgrade without panel replacement. |
| Harmonic Filtering | Optional harmonic filters to reduce distortion in electrical systems and improve power quality. |
| Control and Monitoring System | Integration with PLC, SCADA, or HMI systems for remote monitoring, control, and real-time data. |
Features
- Enables precise power distribution with unwavering efficiency in demanding environments.
- Crafted from durable, high-strength materials to ensure prolonged operational stability.
- Provides flexible customization to accommodate unique industrial and commercial requirements.
- Equipped with advanced protective mechanisms to prevent electrical malfunctions.
- Seamlessly integrates with complex electrical infrastructures for optimal energy management.
